Our innovative solutions ensure safety, efficiency and adaptability in a variety of applications. Thanks to advanced technology and high reliability, our products help customers reach new heights in their operations. Join us on the road to an automated future!
ПЕРЕВАГИ
Why do they choose us?
UkrPrototype specializes in the development and production of ground robotic systems. We create innovative solutions for automation of various tasks, including military robotic systems. Our products are characterized by high reliability, advanced technologies and adaptability to various operating conditions. The company’s goal is to ensure the safety and efficiency of our customers’ operations by integrating modern robotic developments into their activities.
Innovative technologies
Advanced solutions for the creation of high-quality NRCs.
Reliability
High level of product reliability and durability.
Adaptability
The ability to adapt robotic systems to different operating conditions.
Security
Improving the security of workflows through automation.
Efficiency
Increase productivity and reduce costs through robotics.
Professional support
Highly qualified technical support and service.
Burevii
Features
Technical specification
Dimensions: length – 3000 mm, width – 1700 mm, height – 850 mm
Weight: 1100 kg
Payload: up to 600 kg (up to 1000 kg depending on the configuration)
Maximum speed: 15 km/h (up to 36 km/h depending on the configuration)
Travel range: up to 15 km
Usage options
- Ability to integrate modules for demining such as MICLIC
- Delivery of BC and other equipment to the position
- Transportation of the wounded
- Towing other equipment
Soliaris
Features
Technical specification
Dimensions: length – 3000 mm, width – 1700 mm, height – 850 mm
Weight: 1200 kg
Payload: up to 800 kg (up to 1200 kg depending on the configuration)
Maximum speed: 15 km/h (up to 36 km/h depending on the configuration)
Range: up to 40 km (up to 120 kg depending on the configuration with the possibility of adding an additional tank to increase the range)
Options for use
- Transportation of demining devices such as MICLIC
- Transportation of BC and other equipment to the position
- Transportation of the wounded
- Towing other equipment

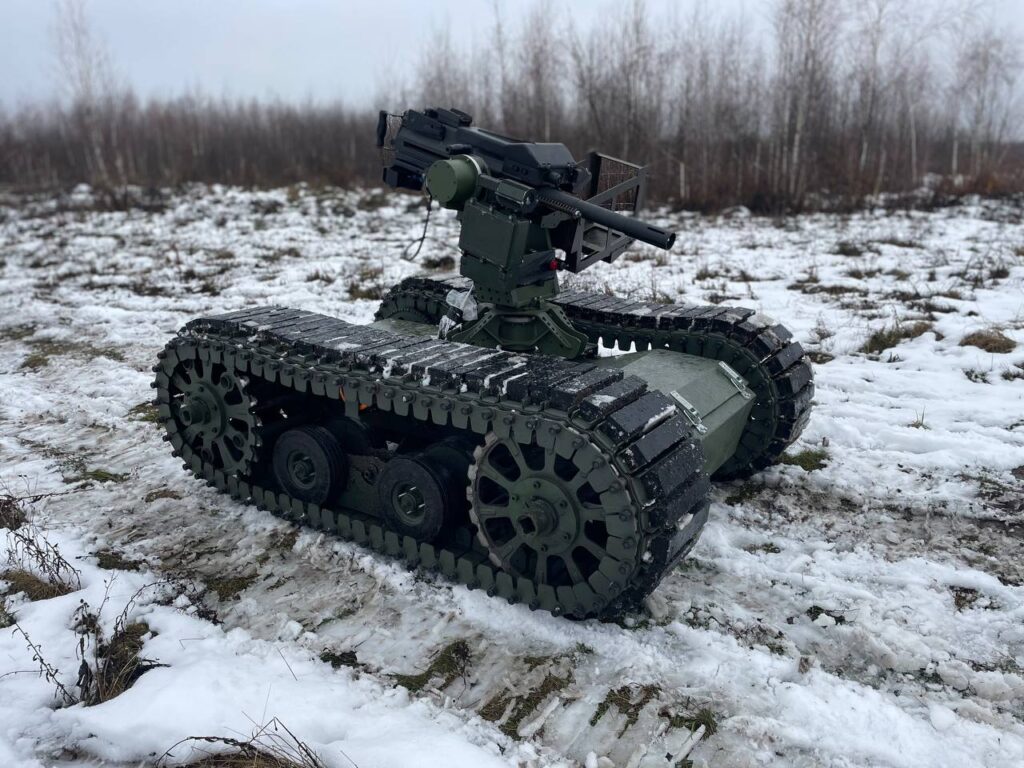

Doom
Features
Technical specification
Dimensions: length – 1800 mm, width – 1300 mm, height – 600 mm
Weight: 380 kg
Payload: up to 300 kg (up to 400 kg depending on the configuration)
Maximum speed: 14 km/h
Range: up to 14 km (up to 28 km/h depending on the configuration)
Options for use
- Integration of various modules, including combat modules
- Delivery of BC and other equipment to the position
- Transportation of the wounded
- Towing small vehicles

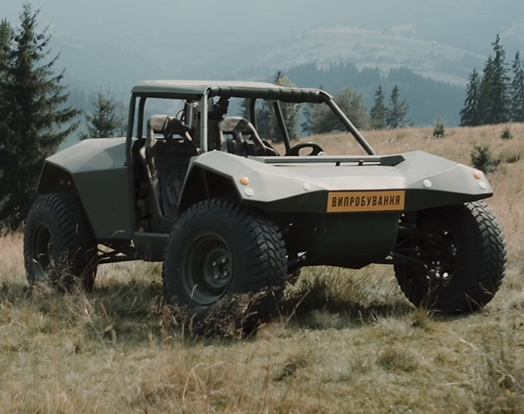

Hoverla
Features
Technical specification
Battery pack: 7.77 kWh to 30 kWh
Maximum power: 40 kW (55 hp) to 80 kW (115 hp)
Full battery charging speed: 2-10 hours to choose from
Wheel size: outer diameter 30 inches, width 10 inches, wheel rim 14 inches in diameter
Brake system: hydraulic
Display: speedometer, odometer, wattmeter, voltmeter
Reverse: yes
Headlights: front, rear and cornering (by agreement)
Number of seats: 2
Mileage: from 40 to 200 km
Maximum speed: 75-120 km/h on request
Maximum load: 300 kg + towing
Ground clearance: 300 mm
Angle of inclination of the ascent uphill: ∞ (depends on the adhesion to the road surface)
Dimensions of the electric buggy: 1800*3000*1500 mm
Weight: 420-550 kg (depending on configuration)
Prototyping workshop
UkrPrototype is a team of talented and motivated professionals engaged in the development of unique vehicles designed to perform a wide range of tasks.
Our vehicles are distinguished not only by the high quality of their mechanical and electrical components, but also by the use of advanced intelligent solutions. For example, an autopilot can be installed on the platform of a universal drone, which allows the drone to automatically return to the specified coordinates in case of radio communication loss.
It is also possible to install an Object Detection system (a system for automatically recognizing objects on the way). In addition, a remote-controlled turret can be integrated into the platform of this drone (note that UkrPrototype does not manufacture or sell turrets, but only assists in their installation on the drone).
Our products are NATO codified
https://eportal.nspa.nato.int/Codification/CageTool/cage-view/a4paj
The codification of military products is the process of systematizing, classifying and identifying defense supplies in order to assign them unique nomenclature numbers. This process ensures uniformity in product description and accounting, facilitates stockpile management, and promotes interoperability of logistics systems of armed forces of different countries, especially within the framework of NATO standards.
The main stages of codification:
Classification: Determining whether a supply item belongs to a particular group or class based on its functional characteristics.
Identification: A detailed description of the item, including its technical characteristics, materials, dimensions and other parameters that allow it to be uniquely recognized among others.
Assignment of a nomenclature number: The assignment of a unique number, known as a NATO Nomenclature Number (NSN), which is used to account for and manage the item of supply.
Purpose of codification:
- To improve the efficiency of supply item management at all stages of their life cycle.
- Providing conditions for automated accounting and improving inventory management.
- Promoting standardization and interchangeability of products.
- Harmonization of national logistics systems with international ones, in particular with the NATO codification system.
Legal and regulatory framework in Ukraine:
In Ukraine, the process of codification of military products is regulated by a number of normative documents, in particular:
- The Law of Ukraine “On Defense Procurement” of 17.07.2020 No. 808-IX.
- The Procedure for Codification of Supply Items, approved by the Order of the Ministry of Defense of Ukraine No. 673 dated 18.12.2017.
- Regulation on Codification of Supply Items, approved by the Order of the Ministry of Defense of Ukraine No. 372 dated June 14, 2007.
These documents define the procedures and requirements for codification, as well as establish the responsibility of military management bodies for organizing and performing codification work.
Importance of codification
Codification is a key element in ensuring efficient logistics and resource management in the defense sector. It avoids duplication of stocks, simplifies procurement and supply processes, and ensures rapid exchange of information between allies in international military operations.
The codification helps to unify and standardize the accounting of military products, which is critical for maintaining the combat capability and interoperability of the Ukrainian armed forces with the forces of other countries, especially in the context of cooperation with NATO.
